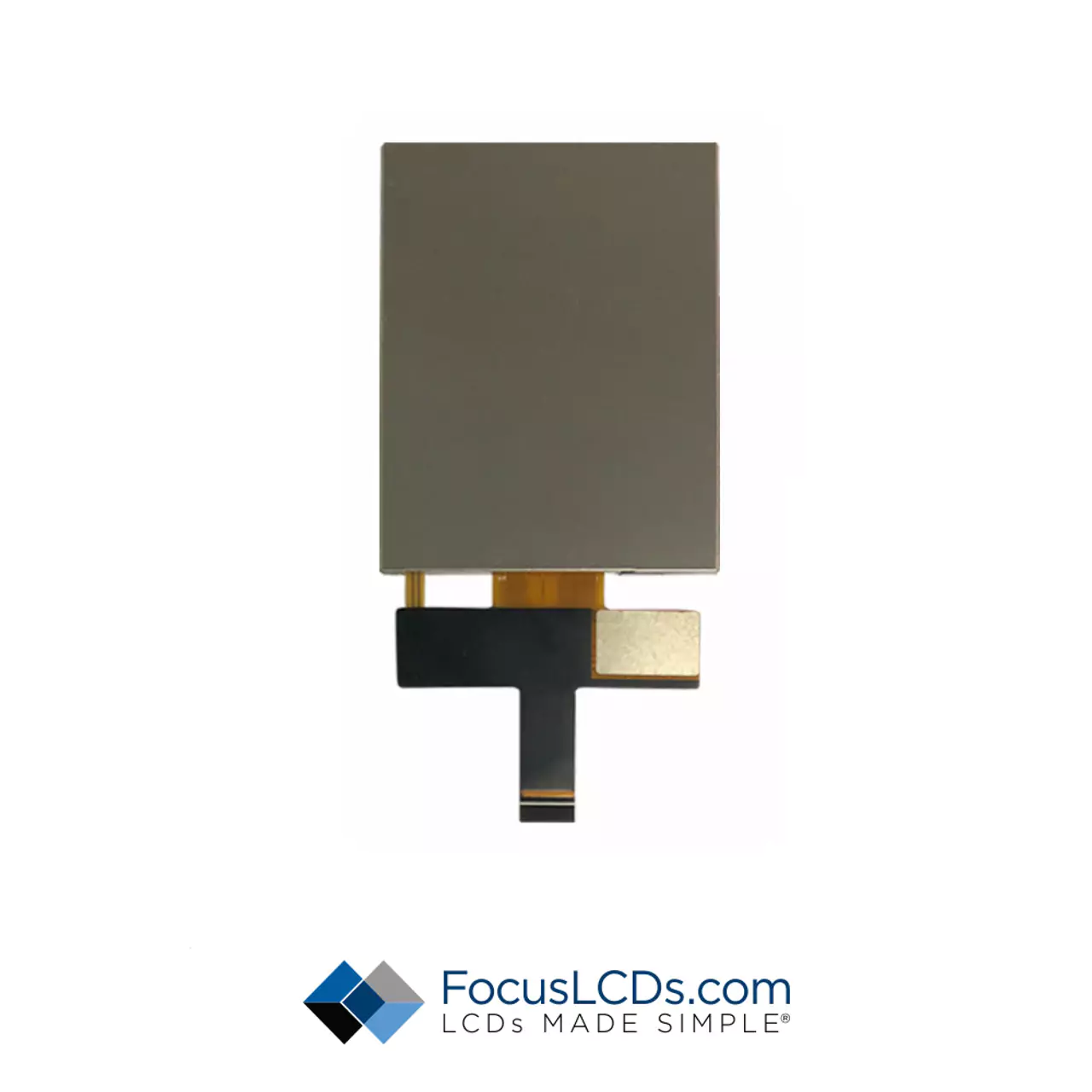

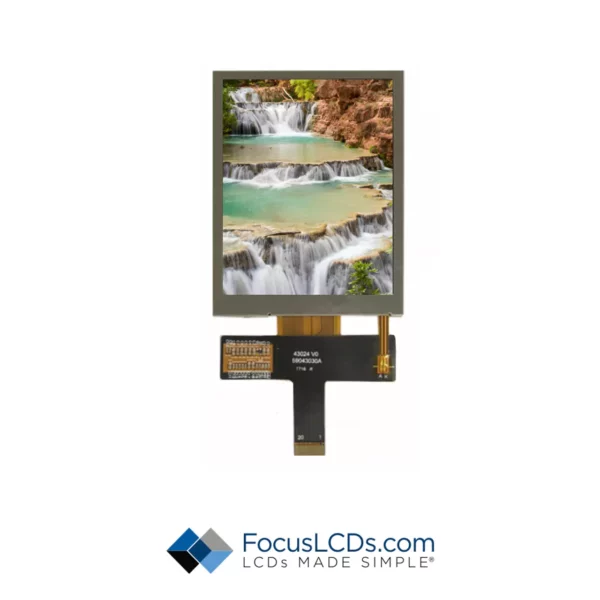

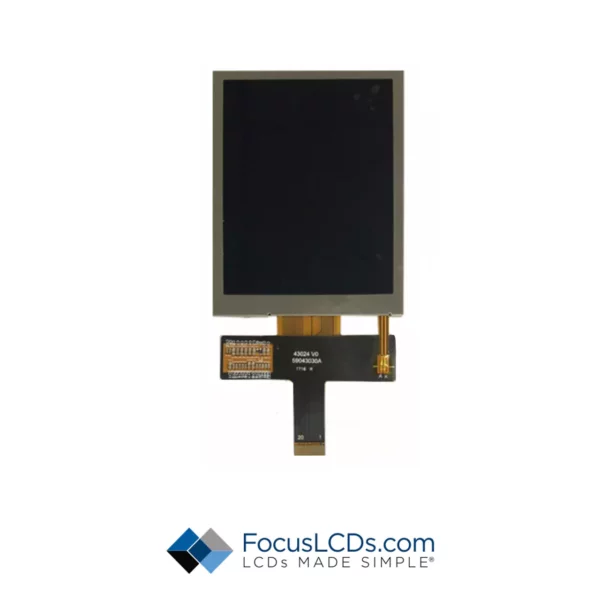

E35RC-FW115-N

$109.13

Out of stock

SKU: E35RC-FW115-N
Attribute Value
Diagonal Size 3.5 Inches
Module Size 64.00 x 85.00mm
Viewing Area 53.57 x 71.42mm
Resolution 480 x 640
Interface 2-Lane MIPI DSI
Brightness 115 Nits
Touch Panel Type No Touch Panel
TFT Controller HX8363-A
CTP Controller None
Display Type Other
Polarizer Transflective
Operating Temperature -20C to 70C

Documentation

3.5-inch TFT Display

Specification SheetsCodeQuality Documentation
E35RC-FW115-N Specification Sheet2 Lane MIPI CodeRoHS
E35RC-FW115-N DWGREACH
HX8363-A Specification SheetCMRT

Description

MIPI-DSI Interface: Our MIPI-DSI Interface TFT LCDs deliver high-resolution visuals and rapid data transfer for a superior display experience. These advanced displays are perfect for cutting-edge applications such as smartphones, tablets, and other high-performance devices, where stunning graphics and ultra-fast refresh rates are essential.

VGA Resolution: Our VGA (Video Graphics Array) TFT LCDs boast a resolution of 640x480 pixels, offering superior image quality and enhanced clarity for more demanding applications. These displays are perfect for use in high-resolution devices like industrial monitors, professional camera systems, and advanced gaming consoles where sharp visuals and accurate color reproduction are essential.

Transflective Polarizer: Our Transflective Polarizer TFT LCDs provide a perfect balance between transmissive and reflective properties, ensuring optimum visibility in various lighting conditions. These versatile displays work well in both indoor and outdoor environments, such as retail signage and mobile devices, where adaptability to lighting is crucial.

Wide Operating Temperature Range: Our Wide Operating Temperature Range LCDs are designed to perform consistently and reliably in extreme temperature conditions, making them suitable for use in harsh environments, such as industrial control systems, automotive applications, and outdoor equipment.

RoHS Compliant: All of our products are RoHS Compliant, adhering to the stringent guidelines set by the European Union's Restriction of Hazardous Substances directive. This ensures that our products are manufactured without the use of harmful materials, prioritizing the safety of our customers and the environment.

Development Accessories

Breakout Boards

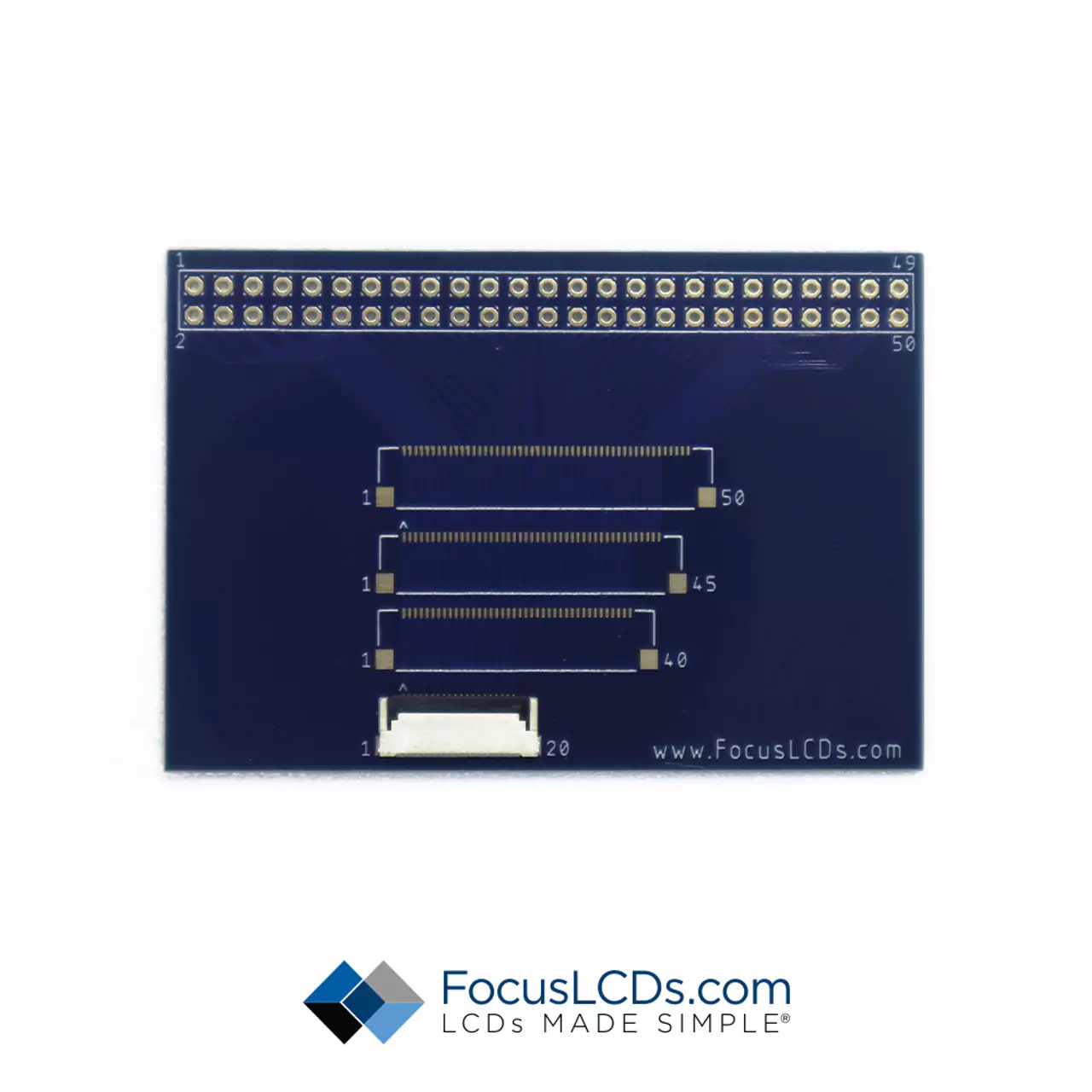

KBB5020A

TFT Breakout Board

Connectors

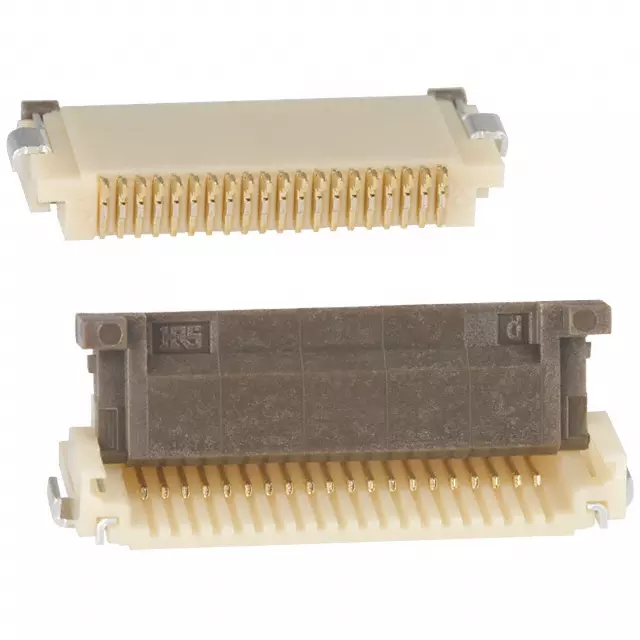

FH12-20S-0.5SH(55)

TFT Connector

Design Resources

Application Notes

Transflective Displays

Transflective TFTs for Battery Conservation

Comparing Transflective and Sunlight Readable Displays

Initializing MIPI DSI Displays in Command Mode

MIPI DSI Video Mode

Landscape and Portrait Modes for TFT Displays

Why Temperature Compensation is Needed for LCDs

Display Viewing Angles

Level Shifting Voltages for LCDs

LCD Resources

Color Depth (65k, 262k, 16.7M colors)

TFT Quality Inspection Standards

Choosing a Microcontroller for Your Display

Recommended TFT Mounting Guide (PDF Download)

Graphics Controllers for High Speed Display Interfaces

LCD Voltage Inputs Explained

The MIPI and LVDS Interfaces

Temperature Consideration for Displays

MIPI Display Serial Interface (DSI)

MIPI DSI Display Memory

Soldering Display Connectors and Surface Mount Devices

Choosing a Cover Glass for Your Display

LCD Connection Types

How to Choose a Connector for a TFT
